For the exchange between an ingenious test system and a productive system and for backup purposes an export in an own XML format is available. This export can also be used for the exchange to other systems, if the import of the other system is adjusted to the XML scheme of ingenious.

To start the export the needed articles need to be selected and the export button needs to be clicked .

The export set consists of various single files. It’s recommended to pack them into a zip-archive. It can be chosen to compress or not. With the checkbox “Export cbo Map” also the contents of selection lists (e.g. product group,…) will be exported.

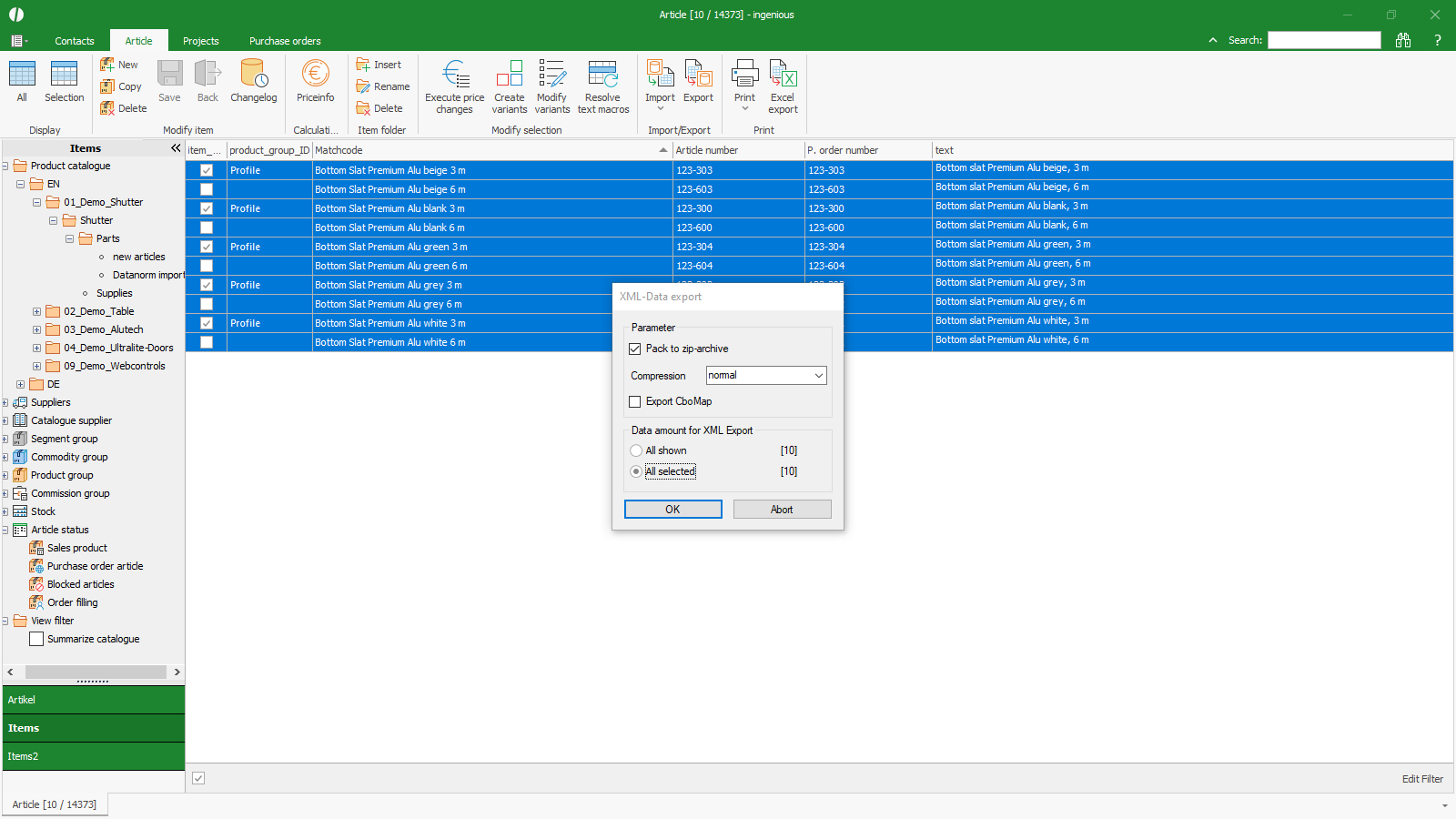

Configuration of article XML export



After confirmation with OK the Windows dialogue appears to save the file.

Then the export is executed.
