The product configurator or checklist is a window that allows the user to enter a part list product in an order.

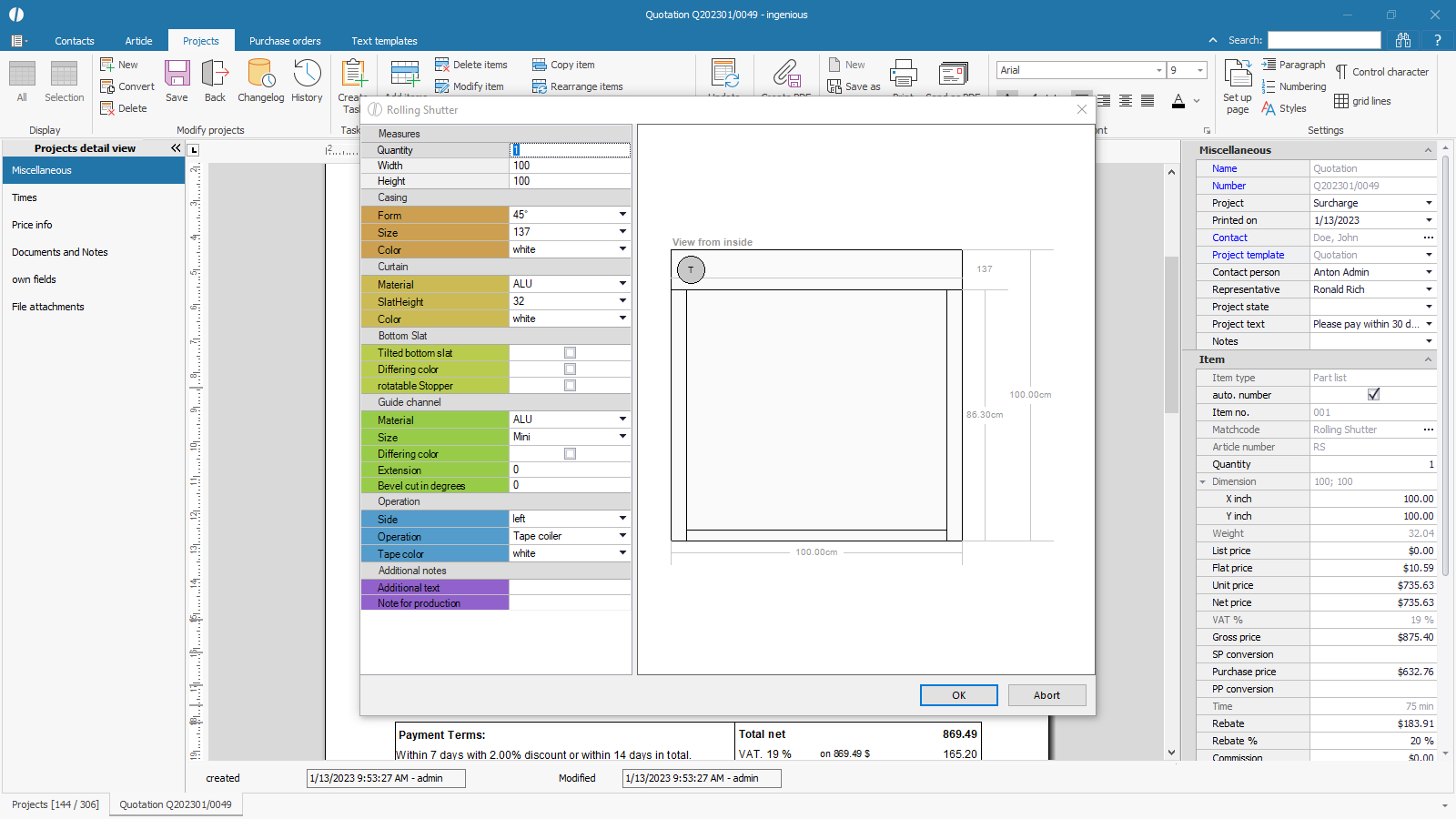

Configurator / checklist in the position entry



The following controls are available for input:

Checkbox	Check box for entering logical values
Combobox	Selection list with the possibility to overwrite values
Drop down	Fixed (non-overwriteable) selection list
Input field	Direct entry of numbers or text Alternatively, you can enter formulas with basic arithmetic operations that are calculated directly. Eg. input “50+50” -> calculation “100”The calculation within input fields can be activated with a simple script:public override void ClientStart() { Globals.bCalcinChecklistInput = true; } Note: Activating the calculation slows down the input, as each input field is checked to see whether it contains a formula and this is calculated.



The configurator / Checklist can be operated using the mouse or keyboard.

When operating with keyboard, you can navigate with the following keys.



Tab key	Jumps to the next option
Alt + Tab key	Jumps to the previous option
Arrow key down	Jumps to the next option; Jumps to the next entry in an expanded selection list
Arrow key right	Jumps to the next option
Arrow key up	Jumps to the previous option; Jumps to the previous entry in an expanded selection list
Arrow key left	Jumps to the previous option
ALT + Arrow key down	Opens the active selection list
Pos1	Jumps to the first entry in an expanded selection list
Picture up	Jumps to the first option; Jumps to the first entry in an expanded selection list
Picture down	Jumps to the last option; Jumps to the last entry in an expanded selection list
Letters / Numbers	Within selection lists you can jump to the desired entry by entering the first letter or number
Spacebar	Activates/deactivates a checkbox
Return	Confirms the selection of an entry in a selection list; Confirms the entry of an alphanumeric field and jumps to the next option
Enter	Confirms the selection of an entry in a selection list; Confirms the entry of an alphanumeric field and jumps to the next option
Escape	Cancels the selection of an entry in a selection list; Cancels the entry of the entire configurator / checklist
End	Confirms the entire configurator / checklist



Appearance and content of a configurator / checklist are defined in the measurement data or in the Sourcecode View.
